High-pressure hoses
Reinforced high-pressure hoses
HP hoses
For compressors, pumps and sprayers

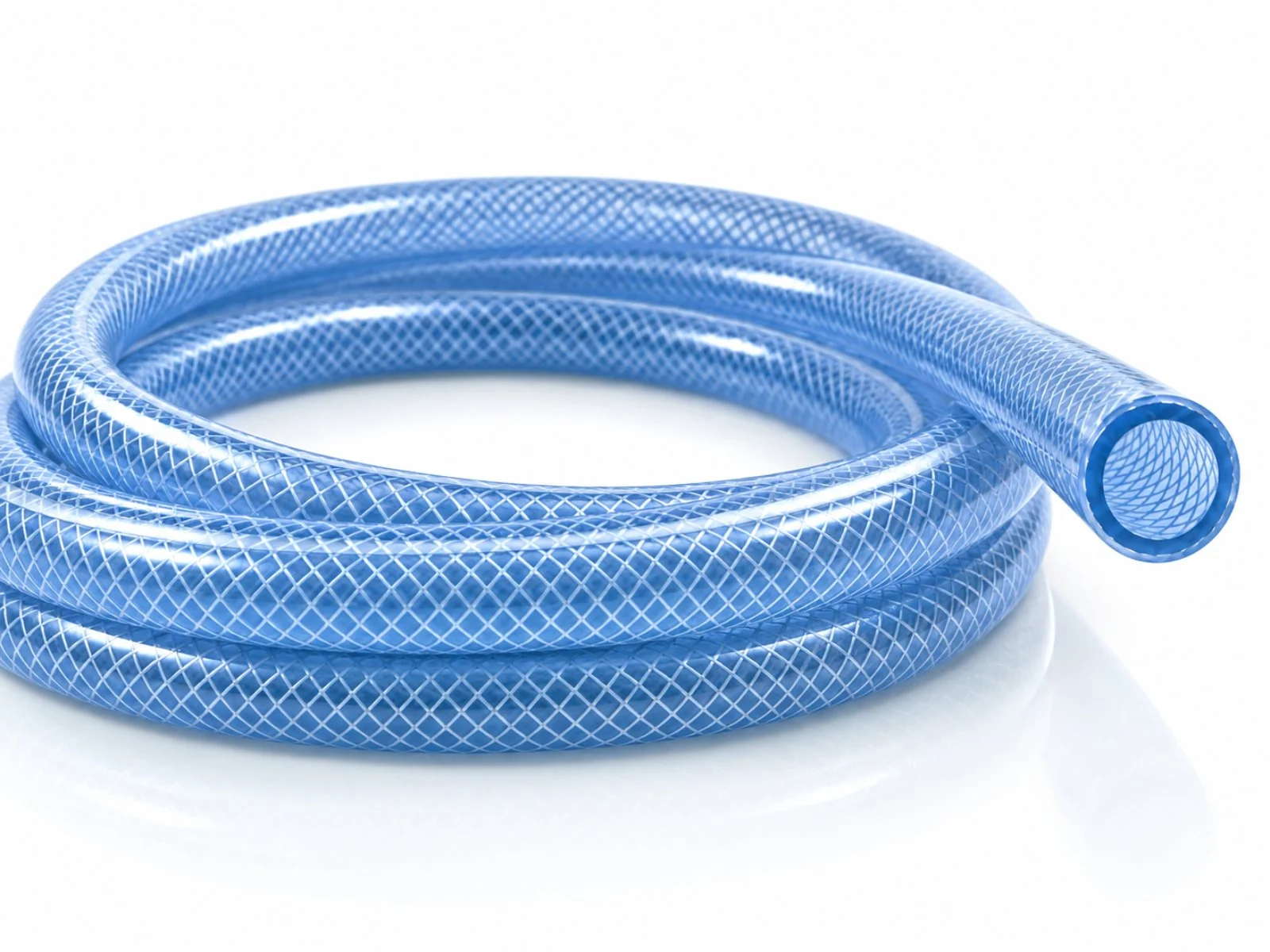

Three-layer hose reinforced with PES filament, built for high-pressure work in industry, agriculture and the home.
High pressure
Food contact
UV-stable
Every metre numbered
Send an enquiry
Features
Construction and properties
- Structure
- Three layers, smooth inside and outside
- Reinforcement
- PES filament
- Material
- Soft PVC, free of cadmium, barium and lead
- Safety
- Formulation suitable for food contact
- Resistance
- UV-stable, resistant to a wide range of chemicals
- Temperature
- -10 °C to +60 °C
Application
Recommended use
Compressors, pumps, oxygen, sprayers, atomisers and other uses in industry, agriculture and the home.
Available colours
clear
red
blue
black
Dimensions and performance
Technical data
Working and burst pressures apply at a temperature of 20 °C.
| Inner dia. (in) | Inner dia. (mm) | Outer dia. (mm) | Working pressure (bar) | Burst pressure (bar) | Bend radius (mm) | Coil length (m) |
|---|---|---|---|---|---|---|
| 1/4 | 6 | 12 | 20 | 60 | 25 | 50 / 100 |
| 5/16 | 8 | 14 | 20 | 60 | 30 | 50 / 100 |
| 3/8 | 10 | 16 | 20 | 60 | 55 | 50 / 100 |
| 1/2 | 13 | 19 | 20 | 60 | 65 | 50 / 100 |
| 1/2 | 13 | 22 | 40 | 60 | 70 | 50 |
| 5/8 | 16 | 22 | 15 | 40 | 100 | 50 |
| 3/4 | 19 | 26 | 10 | 20 | 125 | 50 |
| 3/4 | 19 | 28 | 20 | 40 | 130 | 50 |
| 1 | 25 | 33 | 10 | 20 | 170 | 50 |
Length tolerance ±2%. Inner diameter tolerance ±3%, or ±1% for suction and delivery hoses.
Need a quotation?
We will manufacture to your requirements
Private-label and OEM production is available with customised printing, colour, dimensions and packaging.
